item version
AWC608C

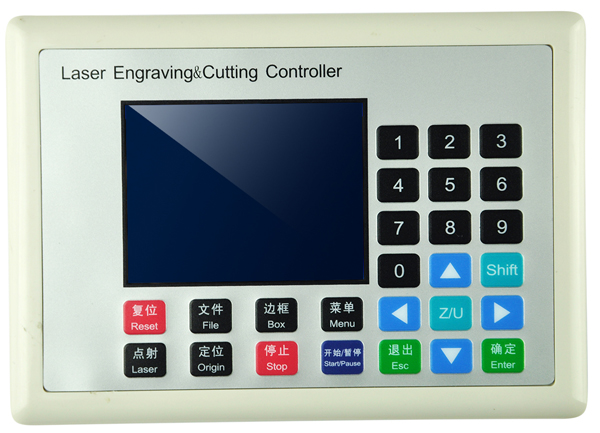

Based on awc608,awc608c adapts true color display which could preview the working files.Parameters transmission control could be done via USB lines,Net work interface and U disk.Support double head movement control and break point memory.Can achieve a 360 degree slope engraving effect.

  1. Support off-line setting parameters.Stable working performance
  2. Support auto reset settings.
  3. U disk Upgrade System Firmware: Support Net work and USB.High transmission speed and low loss.
  4. Support 4 axes control and servo & step motion system control.
  5. Support double heads control and power could be separated adjusted.Support various laser sources and double head movement control cutting.
  6. Support lay separation parameters output.Engraving,cutting mixture multifarious task could be finished at one time.
  7. Software support intelligent composing craft.Save materials cost.

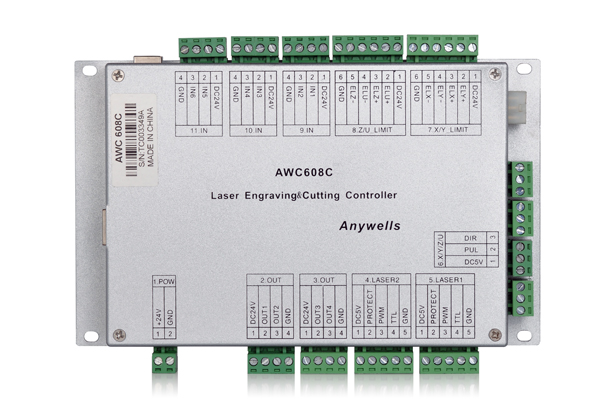

型号 AWC608C
电源 DC24V , 3A
通用输入 4
通用输出 6
轴数 X Y Z U
控制激光数 2,功率立可调
支持激光器 各种直流激励、射频激励、CO2激光器
数据传输方式 网络通USB通讯、U
特色功能 l 双头互移
