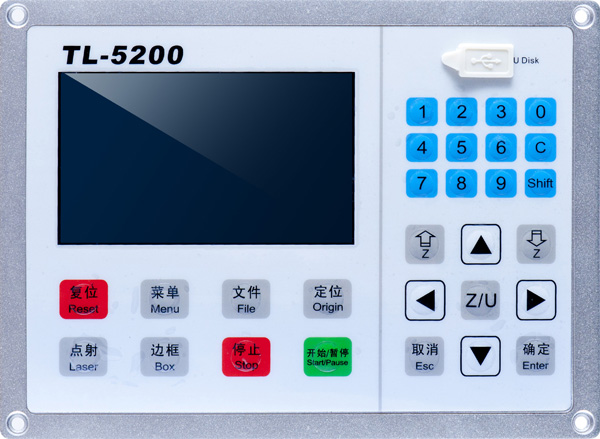

TL-5200 - Laser Cutting Motion Controller - Shenzhen Trocen Automation Technology Co.,LTD

TL-5200 is developed and applied for high performance laser cutting machine, provided a better solution for those large-scale machine cutting at low efficiency and in low speed. Versatile, accurate and fast, TL-5200 series is featured with auto-distribute double-head cutting, seamless transition, anti-interference, high pressure resistance, coupled withthe high-end appearance.

— High speed six axes control( available to be customized based on user’s needs)

— Auto-distribute double-head cutting

— Power control stand-alone

— Seamless transition

— Large format cutting

— Flash drive, network or USB communication

— Data output by layers

— Customize power/speed/laser mode separately

— Auto feeding and lifting flatbed

— Real-time tracking

— Auto blow and focus

— Foot switch and security protection

— Offline control

— Flash drive upgrading

— Continue on engraving/cutting since the previous parking point after power cut

— The mode of engraving and cutting is enabled together

Model	TL-5200
Power Supply	DC 24V, 3A
General Input	6 Roads
General Output	6 Roads
Axis	X Y Z U V W
Laser head	Four heads, power controlling stand-alone
Laser Sources	RF-excited, CO2 laser
Data Transmission	Flash drive, network or USB communication

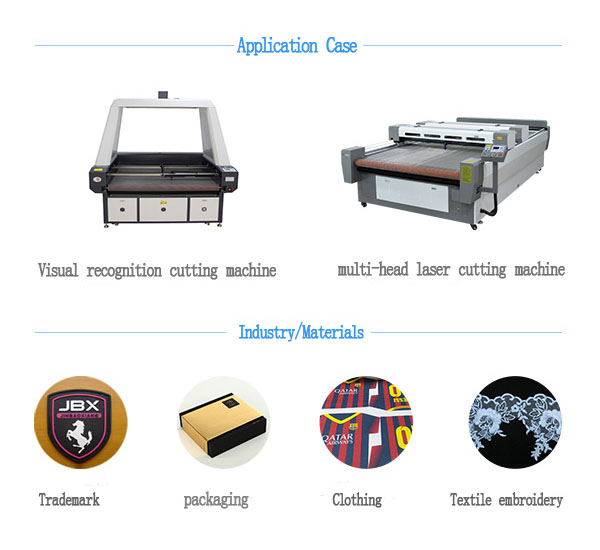

Highlights	— Auto-distribute double-head cutting — Seamless transition — Large format cutting — Visual recognition & positioning
