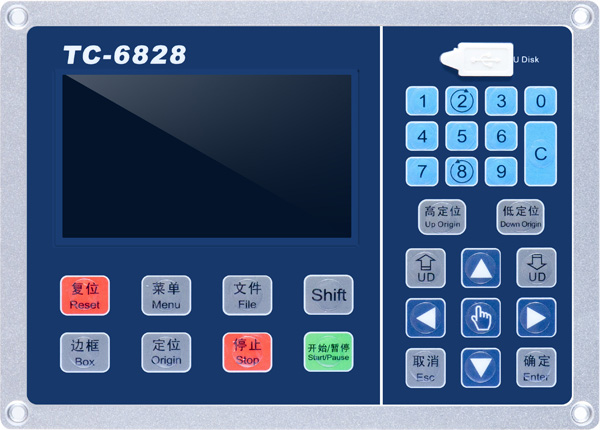

TC-6828 - Oscillating Tool Cutting Motion Controller - Shenzhen Trocen Automation Technology Co.,LTD

TC-6828 that is capable of controlling servo motor, featured with high speed DSP, oscillating tool, circular blade, red dot pointer, pen, perforation and visual positioning, is designated to meet the configuration of high-end motion controller with focusing on oscillating tool cutting. It is perfectly integrated intelligent control with knife cut-off technique. Faster, accurate and eco-friendly, TC-6828 makes it possible to cutting materials with special technique which could not be done perfectly in laser cutting.

— Number Keyboard

— 4.3 color TFT LCD display

— High speed DSP

— Integration of perforation and cutting with high accuracy and speed

— Flash drive, network or USB communication

— Offline control

— Flash drive upgrading

— Intelligent typesetting

— Auto feeding

— Continue on cutting since the previous parking point after power cut

Model	TC-6828
Power Supply	DC24V 3A
General Input	14 Roads
General Output	14 Roads
Axis	X Y Z U UD1 UD2 R1 R2
Data Transmission	Flash drive, network or USB communication
Software	TroCutCCD
Configuration	Oscillating tool cutting or circular blade (supplementary: feeding, pen, perforation, V-cut tool and CCD)
